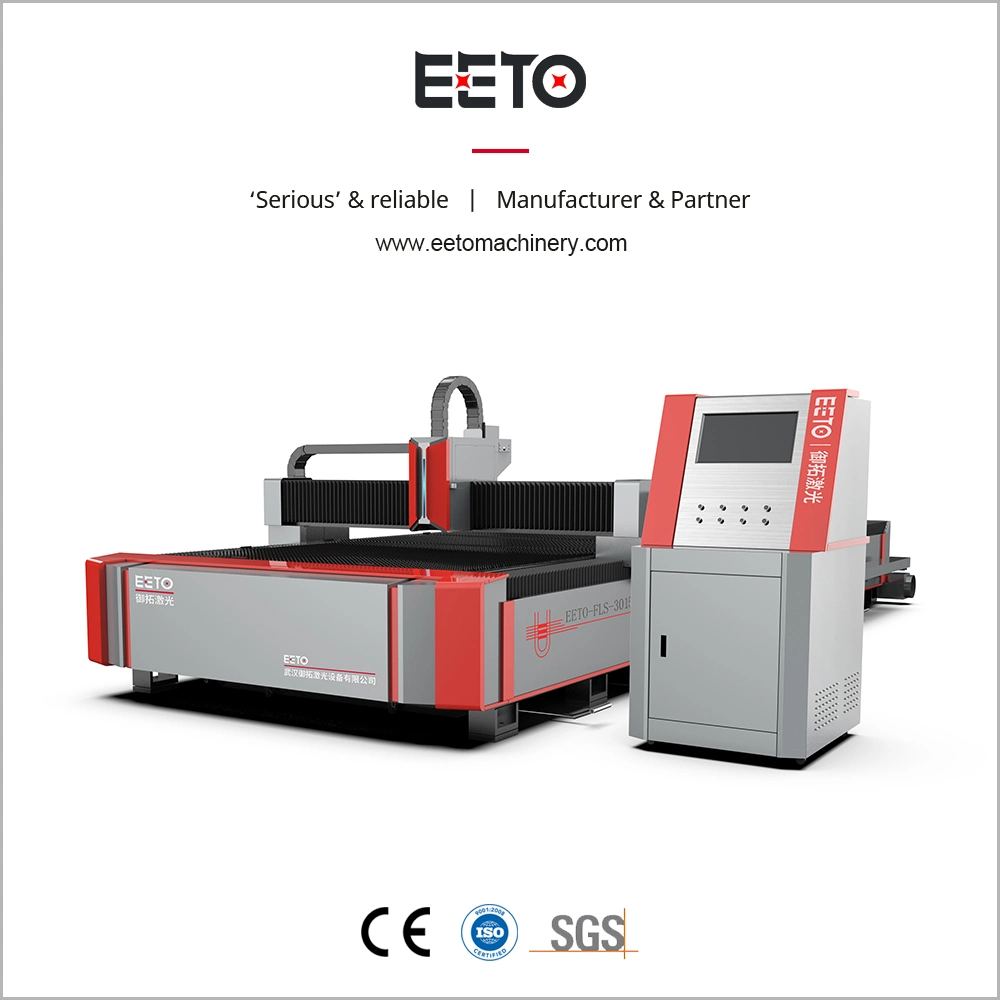

3000*1500mm Cutting Table Laser Cutting Machine With 3000W IPG Single Module Laser Source
1. Product Description :
FLS3015 Laser cutting machine is a laser processing equipment which two versions are provided. One is integrating light, machine and electricity, the other is separating machine, electrical cabinet and laser source. It adopts laser technology, computer control technology and high performance numerical control laser power system, which can quickly and efficiently process various specifications of metal plate.
EETO-FLS3015 series laser cutting machine is 3000 mm * 1500 mm width of laser cutting machine, rapid processing, cutting, stitching and small heat effect, especially suitable for sheet metal processing.
1.2 Fearures :
1. Adopted gantry structure, beam, bed overall processing, high precision equipment, good rigidity, smooth operation.
2. Using of high-quality pipe welded into the frame structure, after professional welding, secondary aging treatment, large planer milling machine precision processing, these design and processing means to ensure that the machine has excellent seismic resistance, high rigidity and stability.
3. The lower part of the bed is equipped with a blanking collector, which can remove the wastes in the production process and collect small parts.
4. Double drive gantry structure, high damping bed, good rigidity, can withstand high speed and acceleration using imported servo motor and drive system, imported rack drive, linear guide guide, ensure the equipment high speed, high precision and high reliability.
5. Fiber laser cutting system, including laser cutting process commonly used layout features and main functions include image processing, laser processing control parameters setting, edit custom cutting process, layout, path planning, simulation, and the cutting machining control support along with the fast power regulation, can be set up separately the introduction of the linear velocity has material technology library function derivation, allowed to save all the process parameters for the same material used again
6. With coaxial red light as the indicator source, the adjustment of the optical system is more convenient and the indicator position of the working point is more accurate.
7. Professional water cooling system is adopted. The temperature of refrigerating unit is displayed by digital table. When the water temperature exceeds the specified temperature, the refrigerating unit will automatically refrigerate, and when the water temperature is lower than the specified temperature, the refrigerating unit will automatically stop refrigerating.
8. The fan removes cutting dust and maintains a good working environment to reduce the harm of dust to personnel and equipment.
1.3 Applicable Industries
EETO laser cutting machines are widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc.
2. 3000W Cutting Parameter Table :
| Materials | Thickness(mm) | Cutting Speed(m/min) | Gas |
| CS | 1 | 25~30 | Oxygen/Air |
| 3 | 3.9~4.2 | Oxygen | |
| 4 | 4.2~4.5 | ||
| 6 | 2.5~3.1 | ||
| 8 | 1.5~2.2 | ||
| 10 | 1.1~1.3 | ||
| 12 | 0.9~1 | ||
| 14 | 0.8~0.9 | ||
| 16 | 0.7~0.75 | ||
| 18 | 0.6~0.65 | ||
| 20 | 0.5~0.6 | ||
| 22 | 0.3~0.5 | ||
| SS | 1 | 25~40 | Nitrogen/Air |
| 2 | 15~18 | ||
| 3 | 7~8 | ||
| 4 | 4~5 | ||
| 6 | 1.8~2.1 | ||
| 8 | 1~1.2 | ||
| 10 | 0.6~1 | ||
| Alu | 1 | 24~30 | Nitrogen/Air |
| 2 | 8~11 | ||
| 3 | 5~7.2 | ||
| 4 | 3.6~4.2 | ||
| 6 | 1~1.5 | ||
| Brass | 1 | 23~35 | Nitrogen/Air |
| 2 | 8~11 | ||
| 4 | 3~4 | ||
| 6 | 1~1.5 | ||
| Red Copper | 1 | 6~8 | Nitrogen/Oxygen |
| 2 | 2.4~3 | ||
| 3 | 0.8~1 |
3. Machine Equipment :
| Laser Power | 3000W |
| Laser Generator | IPG |
| Cutting Table Size | 3000*1500mm(Customization) |
| Cutting Head | Raytools,Switzerland |
| Cutting Software | Bochu, China |
| AC Servo and Motor | Yaskawa,Japan |
| Linear Guide | TBI, Taiwan |
| Rack and Pinion | YYC, Taiwan |
| Reducer | Motoreducer, Italy |
| Electrical Components | Schneider, France |
| Power Supply | Meanwell, Taiwan |
| Water Chiller | Tongfei, China |
| Lubrication System | EETO, China |
| Industrial PC | Friendness, China |

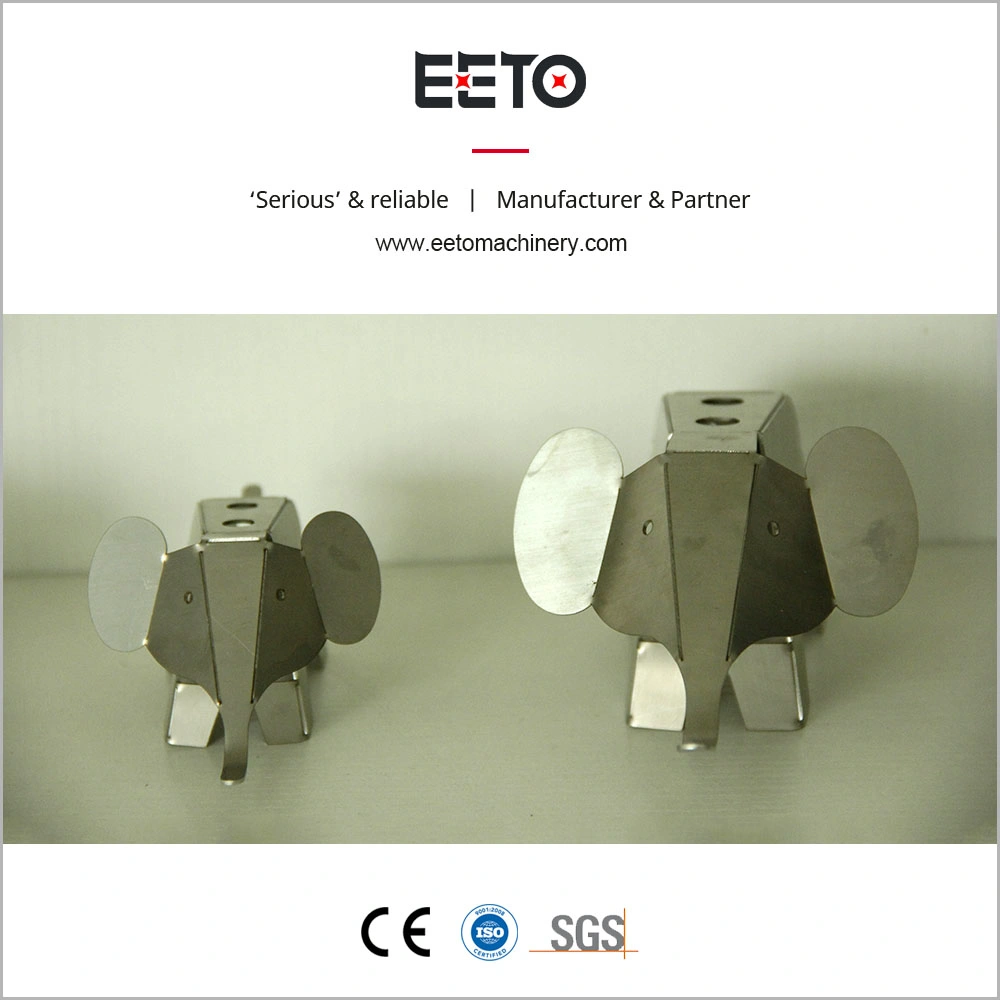

5.Cutting Samples :
6.Warranty and Service :
About services, maintenance and warranty is the most important link, please check below for more detail:
1. Warranty period: From the acceptance qualified date, the warranty period will be 1 (one) year, Seller is responsible to offer free fittings in
these years (except consumable part.) Buyer has to send the damaged fitting to sellers.
2. Out-of-Warranty: We will also provide favorable service of long term technical supports and spares supply to ensure machine's stable and
continuous running.
3. The Seller will give 24 hours service support during warranty time, and giving technical guide by email, telephone, Fax for daily maintenance.
If products are out of warranty and require door to door service, Buyer have to pay for the travel and accommodation & meal cost for the people
from seller's side, labor charge is require, USD100/day per people.
7.Packing info :
8. Company Info :
EETO Laser Equipment Co.,Ltd is a professional laser machine manufacturer in Wuhan, the "Silicon Valley"and source of laser in China. With our technologies and experiences growing for several years, we have already put in market low/medium/high power fiber laser cutting machine, CO2 laser cutting&engraving machine, laser marking machine, laser welding machine.
Our cutting machines are sold worldwide, from Europe to Oceania, from Asia to the Americas, all over the world, such as: Ukraine, Macedonia, Australia, Romania, Malaysia, Mexico, South Africa, Saudi Arabia, India, Vietnam, Korea, etc. And we have several agents and service centre to help you, in Europe, in Asia, in North America, so do our customers, when you meet the problems, they will be happy to help you. We're a great team, we're more like family, not just the relationship business to business.
9. FAQ:
Q: What's working area of our fiber laser cutting machine?
A: Our standard size: 3000*1500mm, also there are 4000*1500mm, 4000*2000mm, and 6000*2000mm for option.
Q: What's the laser power of your fiber laser cutting machine?
A: We have laser power from 1000-15000w, able to different metals with varied thickness
Q: What materials can we cut? What's cutting thickness of fiber laser cutting machine?
A: Fiber laser cutting machine can cut metal materials, including carbon steel/stainless steel/aluminum/galvanized sheet, but high reflective materials are restricted to be cut with fiber fiber, like brass/silver/bronze, if you have such material to cut, please connect us for professional advice
B: Cutting thickness from 0.5mm to 25mm according to different laser power.
