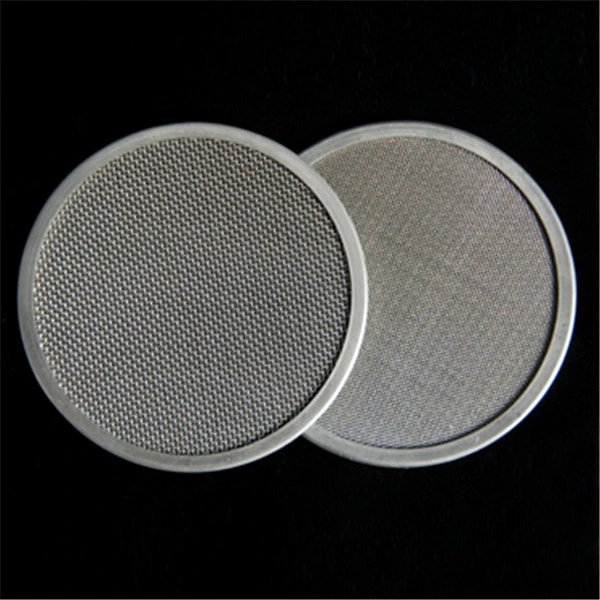

304, 316 Stainless Steel Woven Wire Mesh Filter Discs with Wrapped Edge
Product Description
Filter discs can be made of woven wire mesh, sintered fiber web or sintered wire cloth sheets,
but woven wire mesh filter discs are the most popular.
Materials: Stainless steel, carbon steel, brass, etc.
Shapes: Circles, kidney and rectangular.
Filtration Rating: 12 to 1,000 micrometer
Layers: Single layer or spot welded Multi-layer screen discs.
Our advantage:
1. OEM products is welcomed.
2. We are direct factory, so any quantity is acceptable.
3. We have ISO9001 Certificate.
4. Samples are available if needed.
5. Supply Mill Test Certificate with the products.
6. Our professional technicians could supply you suitable solutions.
They are widely exported to US and Europe.
Product Description
Filter discs can be made of woven wire mesh, sintered fiber web or sintered wire cloth sheets,
but woven wire mesh filter discs are the most popular.
Materials: Stainless steel, carbon steel, brass, etc.
Shapes: Circles, kidney and rectangular.
Filtration Rating: 12 to 1,000 micrometer
Layers: Single layer or spot welded Multi-layer screen discs.
Our advantage:
1. OEM products is welcomed.
2. We are direct factory, so any quantity is acceptable.
3. We have ISO9001 Certificate.
4. Samples are available if needed.
5. Supply Mill Test Certificate with the products.
6. Our professional technicians could supply you suitable solutions.
They are widely exported to US and Europe.
Mesh | Wire Dia. (MM) | Material(AISI) |
| 12meshX64mesh | 0.58/0.40 | 304 or 316 |
| 24meshX110mesh | 0.36/0.25 | 304 or 316 |
| 14meshX88mesh | 0.50/0.33 | 304 or 316 |
| 30meshX150mesh | 0.18/0.14 | 304 or 316 |
| 40meshX200mesh | 0.14/0.11 | 304 or 316 |
| 50meshX250mesh | 0.10/0.071 | 304 or 316 |
| 80meshX700mesh | 0.06/0.05 | 304 or 316 |
| 165meshX800mesh | 0.071/0.040 | 304 or 316 |
| 165meshX1400mesh | 0.05/0.032 | 304 or 316 |
| 200meshX1800mesh | 0.05/0.03 | 304 or 316 |
| 325meshX2300mesh | 0.030/0.025 | 316L |
| 400meshX2800mesh | 0.030/0.02 | 316L |
